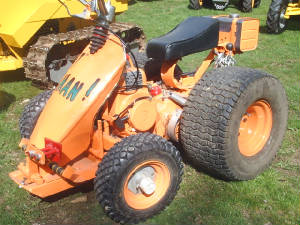

"T-Man's Quad"
Totally designed and built by me , Tyler's Grandpa for Christmas 2005
Consists of 8 spd wheel horse transmission
Ariens lawn tractor front end, 5 HP techumseh mini bike engine, minim bike cintrifical clutch with train drive
which allows take off from any gear.
The throttle is a bicycle hand brake control, foot brake controls transmission brake
Kawasaki watercraft pipe
18.0 x 9.50 x 8.00 Rear tires
4.10 x 3.50 x 6.00 Front tires
Wheel horse frame shortened and turned upside down to allow engine to be mounted low
Steering wheel cut in half becasue it gave this machine quick steering
The seat is adjustable, enough to allow me at 6' 2" to drive this machine
My grandson Tyler ("T-Man") 10 years old, loves to pull logs, rocks,,etc. with this machine

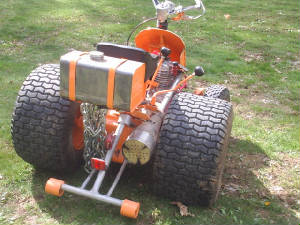

This machine also pulls wheelies, notice wheelie bars


|
